Sensor profiles for toolless self-assembly
With the SP sensor profile range, Mayser has developed a system specially tailored to the requirements of the door and gate market.
Our sensor profiles are co-extruded profiles and thus enable very easy handling and offer high flexibility. The sensor profiles can be combined with end caps and variable aluminium profiles, and can be assembled and installed into fully functional safety edges in no time at all, using a smart plug-in system, without the use of adhesives or additional tools.
DIY plugs and resistors feature high pull-out forces, a non-slip design and a permanent, precise fit. Thanks to protection class IP67, the sensors are completely protected against dust, contact and water jets from any angle.
In series production, special profiles can be developed from a wide range of products, which are used in individual delivery lots and packaging for simple and fast further processing. In the assembly-friendly service operation, simple and fast self-assembly on site is possible.
Our sensor profiles are compatible with conventional gate control and transmission systems with an 8k2 evaluation.
Industries
Advantages
-
Available as ready-made products or in DIY version -

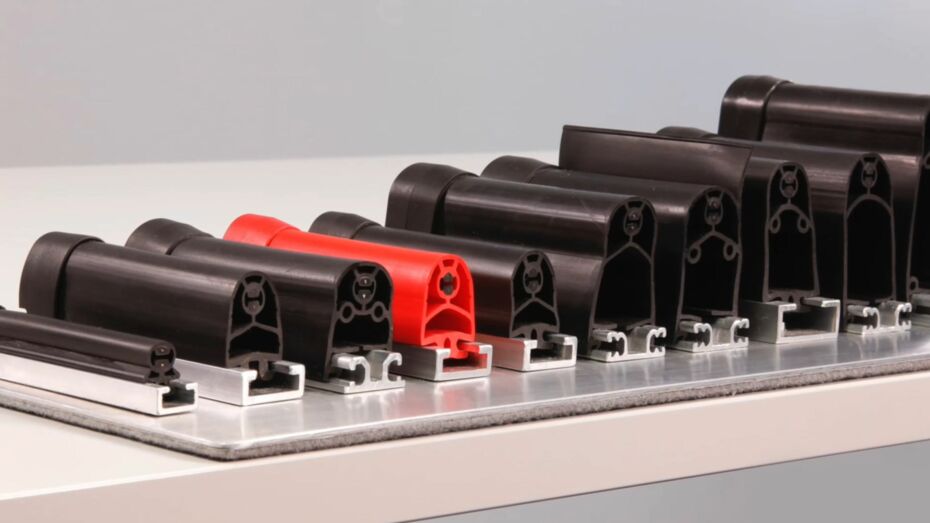

Above-average selection of profile geometries, heights and base geometries -
Customer-specific solutions -
Fast, uncomplicated assembly and installation on site -
Adhesive-free self-assembly -
High degree of protection with ring assembly (IP68) -
High degree of protection with self-assembly (IP67)
-
Cold resistance up to -25°C -
Complies with EN 12978, ISO 13849-1 and ISO 13856-2 -
Combinable with Mayser signal transmission systems
Convenience and safety at doors and gates.
The design allows convenience of handling and offers a high degree of flexibility.
Various profile heights, profile and foot shapes and individual printing and color design for customer-specific requirements.
Applications
Closing edge protection at main and secondary closing edges in the following areas:
- sliding gates
- revolving doors
- overhead sectional doors
- roller gates
- folding gates
- crossing gates / barriers
Downloads
-
Doors, gates and windows brochure (2.96 MB) -
Certificate 44 205 13043610 DIY SP 37 (1.87 MB) -
Certificate 44 205 13043611 DIY SP 57 (1.94 MB) -
Certificate 44 205 13043612 DIY SP 67 (2.03 MB) -
Certificate 44 205 13043614 DIY SP 87 (1.74 MB)
